How to Choose the Right Trolley Crane for Global Purchasing?

Choosing the right Trolly Crane for global purchasing requires more than comparing prices and lifting capacities. The decision begins with the actual load path, working environment, and expected production rhythm. A crane lifting a 5-ton steel coil differs greatly from one moving fragile machinery across a clean assembly floor.

“Crane selection should follow the application, not the catalogue,” says lifting-equipment consultant David R. Smith. His observation captures a common purchasing mistake. Buyers often focus on rated capacity first. They may overlook span, lifting height, trolley speed, duty classification, power supply, and available headroom.

Small details matter.

For example, a low workshop roof may require a low-headroom trolley design. Outdoor operations may need weather protection, corrosion-resistant components, and reliable limit switches. Frequent starts and stops can also demand stronger brakes, motors, and control systems. These factors influence operating life and maintenance costs.

Global purchasing adds further responsibility. The supplier should provide load charts, inspection records, technical drawings, installation guidance, spare-parts information, and clear warranty terms. Electrical requirements must match the destination facility. Transport dimensions should also be checked before production begins.

A suitable Trolly Crane should support safe operation and practical ownership. It should fit the operator’s workflow, not merely satisfy a specification sheet. That sounds obvious, yet it is often missed.

Experience also teaches humility. Site measurements can be incomplete. Future loads may change. Therefore, buyers should confirm assumptions with qualified engineers and request a documented technical review before placing an order. The cheapest quotation may not represent the lowest long-term cost. Reliability, service access, training, and honest communication often matter more.

Table of Contents [Hide]

1 Define Load Capacity: SWL, WLL, and 125% Proof-Test Requirements

2 Match Duty Class: FEM 1Am–4m and ISO M3–M7 Service Ratings

3 Select Crane Type: Top-Running, Under-Running, and Gantry Configurations

4 Verify Travel Performance: 20–40 m/min Trolley Speed and Duty Cycles

5 Check Global Compliance: EN 15011, ASME B30.2, and IEC 60204-32 Standards

Define Load Capacity: SWL, WLL, and 125% Proof-Test Requirements

Choosing a trolley crane for global purchasing starts with a precise load definition. Safe Working Load (SWL) is the maximum permitted working load, while Working Load Limit (WLL) is the manufacturer’s declared rated capacity. In modern specifications, WLL is usually clearer and preferred. Do not confuse either term with breaking load. A 5-tonne WLL does not mean the crane should routinely lift 5 tonnes in every condition.

Check the complete load path. Include the trolley, hoist, hooks, slings, attachments, impact forces, load swing, and uneven travel. ASME B30.16 and ISO 4301-1 provide useful guidance for hoisting equipment and duty classification. A 125% proof test means applying 1.25 times the rated capacity under controlled conditions. It verifies structural and functional performance; it does not increase the working rating. The requirement may come from a contract, local authority, or project specification, so confirm it before ordering.

Be conservative here. The International Labour Organization reported approximately 2.93 million work-related deaths and 395 million non-fatal injuries annually in its 2023 estimates. Those figures are not crane-specific, but they show why capacity wording matters. In procurement documents, state the WLL, span, duty cycle, proof-test load, test duration, and acceptance records. Ask for calibrated test certificates and material traceability. A spreadsheet can look exact while hiding a missing dynamic factor. I would also challenge any supplier who treats 125% testing as a marketing feature. It is evidence from one test, not permission to exceed the rated limit.

Match Duty Class: FEM 1Am–4m and ISO M3–M7 Service Ratings

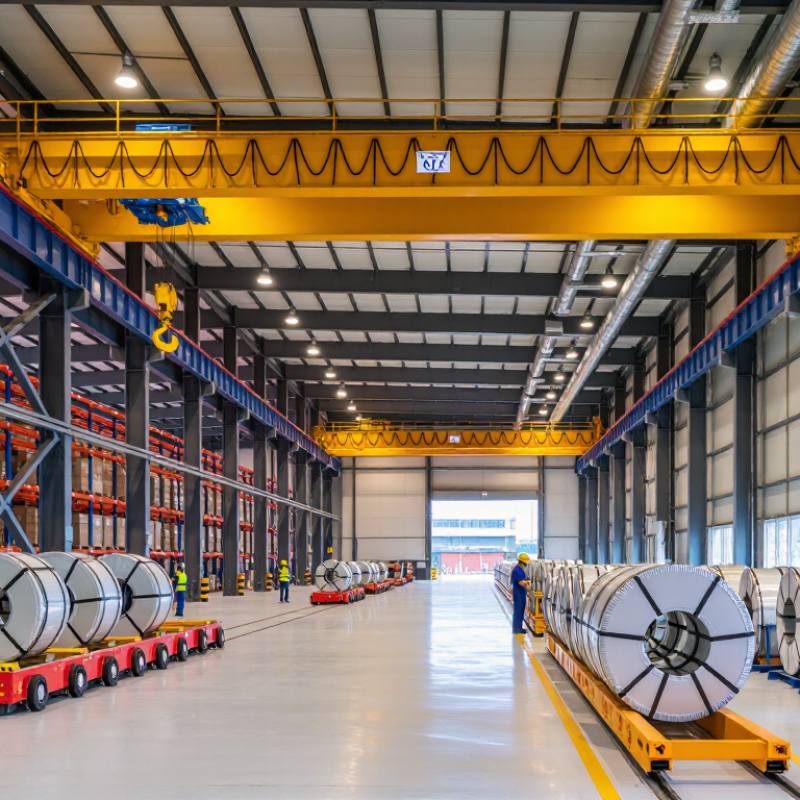

How to Choose the Right Trolley Crane for Global Purchasing?

Match Duty Class: FEM 1Am–4m and ISO M3–M7 Service Ratings

A trolley crane should match its working pattern, not only its rated load. Duty classes describe repeated lifting, travel, starts, stops, and total operating time. FEM 1Am represents lighter service, while 4m suits demanding, frequent operation. ISO M3 to M7 follows a similar progression from lighter to heavier use. These ratings help buyers compare equipment across international projects.

Record the real workload before requesting quotations. Note the lifted mass, average load, maximum load, lifting height, travel distance, and daily cycles. A crane moving two tonnes occasionally may need a lower class than one moving one tonne every few minutes. Count starts and stops carefully. They create heat and mechanical stress. Site temperature, dust, humidity, and outdoor exposure also influence component life.

Do not convert FEM and ISO classes mechanically. Their definitions can differ by calculation method and regional standard practice. Ask suppliers to state the design classification, operating group, calculation basis, and expected service hours clearly. I would also request a duty-cycle worksheet, not a confident verbal promise. That small document exposes unrealistic assumptions. A higher class is not automatically better. It can increase cost, weight, and maintenance needs without improving a lightly used application. This is where purchasing teams should pause and challenge their first estimate.

Select Crane Type: Top-Running, Under-Running, and Gantry Configurations

How to Choose the Right Trolley Crane for Global Purchasing?

Select Crane Type: Top-Running, Under-Running, and Gantry Configurations

Global overhead crane demand is expanding. MarketsandMarkets’ 2024 Overhead Cranes Market report projects growth from about USD 4.7 billion in 2023 to USD 6.1 billion by 2028. That growth does not make every configuration suitable. Top-running trolley cranes travel on rails installed above the runway beams. They provide strong headroom and high lifting capacity for steel plants, workshops, and busy production lines. Confirm building columns, runway loads, and maintenance access before ordering.

Under-running cranes travel beneath the runway structure. They suit buildings with limited roof height or lighter existing steelwork. Their installation can preserve valuable floor space, but the supporting structure must handle repeated wheel loads. ISO 4301-1 classifies crane utilization through working cycles and load spectra. Ask the supplier to calculate duty class from real lifting patterns, not occasional maximum loads. That detail is often missed.

Gantry cranes stand on legs and move along ground rails or rubber wheels. They work well outdoors, in temporary yards, and where no building runway exists. Weather sealing, wind restraint, ground flatness, and drainage deserve close attention. The World Steel Association reported 1.89 billion tonnes of crude steel production in 2023, showing why heavy industrial sites still need robust material handling. Yet capacity alone can mislead. A 20-ton crane may be inefficient for frequent 3-ton lifts. Review span, lift height, cycle frequency, load shape, local standards, and future expansion together. The cheapest configuration can become expensive when the building needs reinforcement.

Verify Travel Performance: 20–40 m/min Trolley Speed and Duty Cycles

How to Choose the Right Trolley Crane for Global Purchasing?

Travel performance is a practical test of trolley suitability. The target speed usually falls between 20 and 40 m/min. For many workshops, 20 m/min offers smoother positioning near loading bays. A 40 m/min trolley can reduce transfer time across a long runway. Watch the load path. A faster trolley is not automatically better. Higher speed may increase sway, stopping distance, and operator correction. During supplier discussions, request measured travel data under realistic loads. Ask whether testing covered empty-hook and rated-load conditions. Also check acceleration, braking response, wheel alignment, and noise levels. A clean test report is more useful than a broad speed claim.

Duty cycle deserves equal attention. A crane handling ten lifts per hour needs different capacity from one operating continuously. Estimate starts, stops, loaded travel, idle periods, and daily working hours. Include seasonal production peaks. Then compare the result with the crane’s rated duty classification and motor thermal limits. If the trolley runs near its maximum cycle, request temperature records and maintenance guidance. I have seen purchasing teams choose speed first, then discover excessive brake wear. That assumption was too simple. Allow margin for future demand. A practical trial should measure travel time, stopping distance, sway, and motor temperature. Record the results with the intended load. One overlooked detail can change the selection.

How to Choose the Right Trolley Crane for Global Purchasing? - Verify Travel Performance: 20–40 m/min Trolley Speed and Duty Cycles

Selection Profile	Rated Trolley Speed	Travel Time Over 30 m	Indicative Operating Time Share	Typical Control Method	Recommended Application	Key Verification Points	Speed Regulation
Basic Handling	20 m/min	90 seconds	Up to 25%	Two-speed motor or contactor control	Light warehouse handling, maintenance lifting, and infrequent load positioning	Check motor starting frequency, rail alignment, wheel flange clearance, and stopping distance	Low
General Industrial	25 m/min	72 seconds	25–30%	Two-speed motor with controlled acceleration	Fabrication shops, assembly areas, machine-room servicing, and routine material transfer	Confirm travel motor thermal capacity, brake response, buffer arrangement, and load distribution	Moderate
Frequent Handling	30 m/min	60 seconds	30–40%	Variable-frequency drive with soft start and stop	Production lines, steel processing, equipment assembly, and repeated load movement	Verify acceleration and deceleration settings, inverter duty rating, wheel load, and control-panel protection	High
High-Throughput Handling	35 m/min	51 seconds	40–50%	Variable-frequency drive with adjustable ramp control	Busy manufacturing facilities, logistics transfer zones, and multi-shift production operations	Check heat dissipation, braking energy, rail condition, anti-sway requirements, and repeated-start performance	High
Heavy-Duty Transfer	40 m/min	45 seconds	50% or higher	Closed-loop variable-frequency drive	Continuous industrial transfer where high travel frequency and precise positioning are required	Confirm duty classification, motor insulation, brake wear capacity, gearbox service factor, and emergency-stop behavior	Very high
Purchasing note: Travel time is calculated from the rated speed over a straight 30 m runway and excludes acceleration, deceleration, positioning, and load-handling delays. The operating time share is an indicative selection reference; final duty classification should be confirmed from the expected load spectrum, daily operating hours, starts per hour, travel distance, ambient conditions, and applicable local crane standards.

Check Global Compliance: EN 15011, ASME B30.2, and IEC 60204-32 Standards

Choosing a trolley crane for global purchasing starts with compliance, not lifting capacity. EN 15011 addresses bridge and gantry crane design, classification, load combinations, and safety-related calculations. ASME B30.2 focuses on overhead and gantry crane operation, inspection, maintenance, and operator responsibilities. IEC 60204-32 covers electrical equipment for lifting machines, including control circuits, emergency stops, and protective bonding.

Check the destination market early. A crane may satisfy EN 15011 but still need different electrical documentation under local rules. Confirm trolley travel limits, braking performance, pendant controls, enclosure ratings, and emergency-stop behavior. Ask for design calculations, test records, risk assessments, and material traceability. Paperwork matters. So does the workshop reality.

OSHA’s construction review identified 72 crane-related fatalities between 2011 and 2017. That figure is not a complete global picture, but it shows why compliance cannot be treated as a purchasing formality. During supplier evaluations, compare the exact standard edition, not just the standard number. Verify nameplate data against drawings and test results. Independent inspection adds useful confidence, although it cannot repair poor design. One overlooked issue is site power quality; voltage variation can affect contactors, brakes, and control reliability. IEC 60204-32 alignment should therefore be checked with the installation conditions. Standards improve decisions, but they do not replace competent commissioning and operator training. Mistakes still happen. Review them before shipment.
